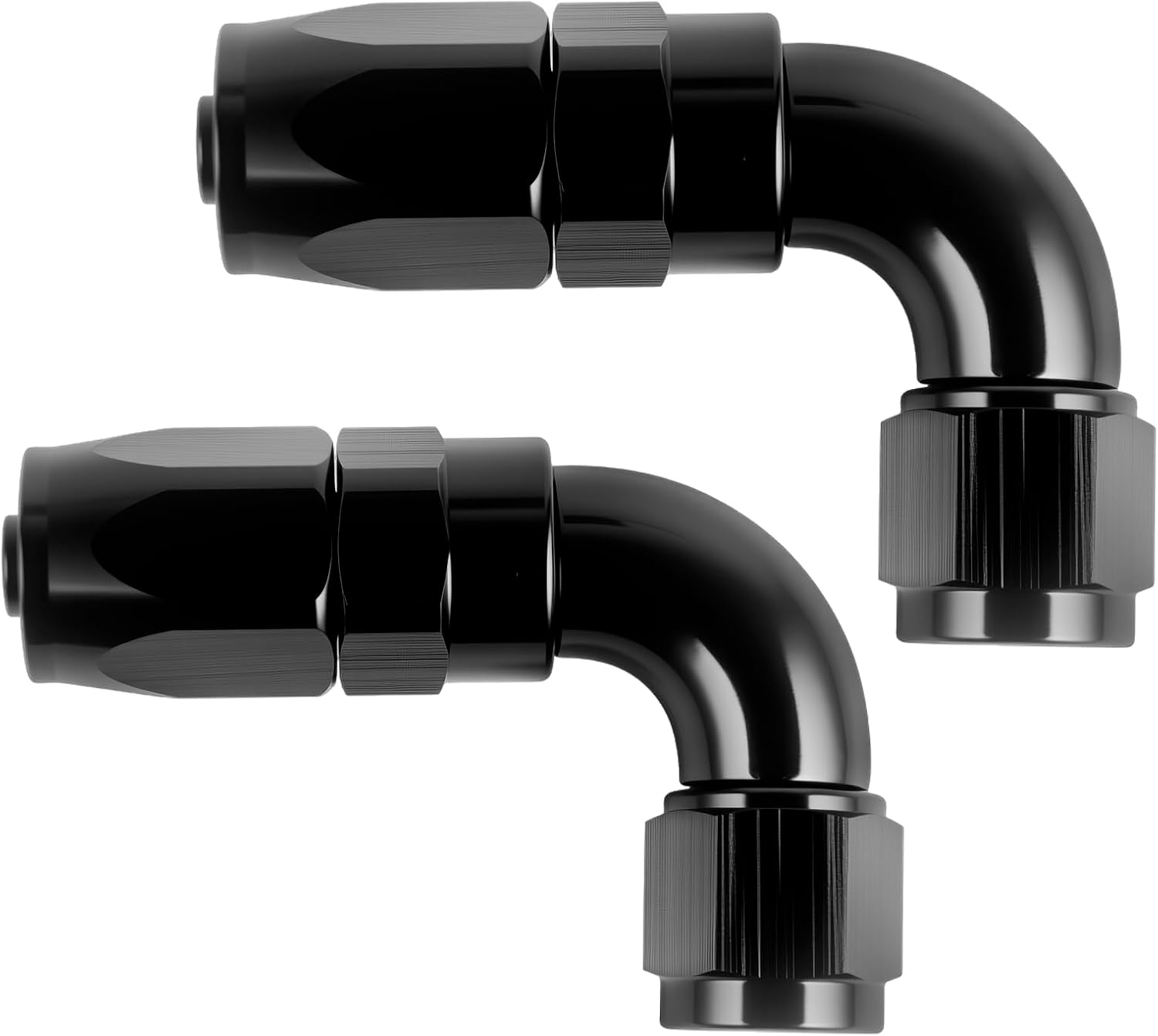

10AN 90 Degree One Piece Full Flow Hose End Fitting Swivel For CPE Braided Hose Fuel Line Aluminum 2PCS

Scope of application：Fit for all CPE stainless braided and nylon braided hose,Not fit for PTFE fuel line and rubber fuel line.Material:T-6061 Lightweight Aluminum Alloy, Anodized Finish for DurabilityApplication:Universal,such as:Oil/ Fuel/ Water/ Fluid/ Air LineHigh traffic design：The outer diameter of a regular 10AN fittings channel is 16mm, while the outer diameter of a full flow fittings channel is 24.6mm, which can better facilitate the rapid flow of fuel.Parameter: Max Working Pressure: 1500PSI. Working Temperature Range: -40℉ to 250℉.Installation：Swivel design for easy assembly,The adjustable AN wrench is highly recommended.The AN side is sealed by a 37 degree angle.Package include:2X 90 Degree Full Flow Hose End Fitting

• Wide Applications:The swivel hose end is widely used in oil/ fuel/ water/ fluid/ airline etc. Connect oil gas line, braided fuel line ,clutch hose,turbo line etc. Our swivel fitting is work with all CPE stainless braided and nylon braided hose. They are not compatible with PTFE hose, E85, rubber hose
• High Quality Material:The female AN 90 Degree swivel fittings are made of lightweight aluminum alloy 6061-T6 material for strong strength and good durability. Black anodized for great appearance and anti-corrosion, superior thread strength. Max Working Pressure: 1500psi. Working Temperature Range: -40℉ to 250℉. Can be suitable for competition applications where reduced weight is needed

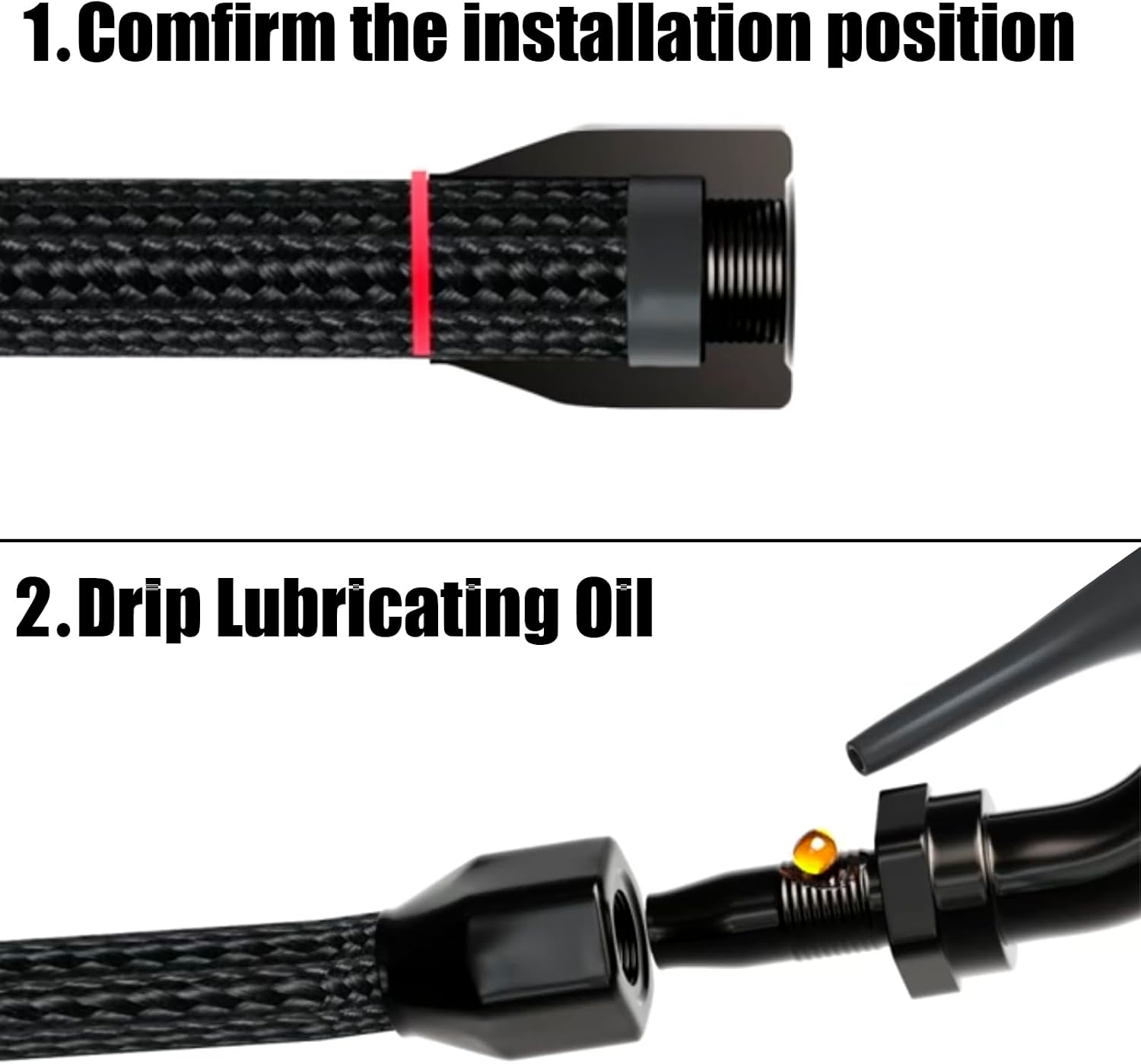

• Easy to Use:The swivel hose end are easy to install, We normally recommend a bit of assembly lube to help prevent any galling.That gives better fluid flow and integrity over the normal brazed together hose ends. Swivel fittings are easy to use and don't require special equipment
• High Traffic Design:The outer diameter of a regular 10AN fittings channel is 16mm, while the outer diameter of a full flow fittings channel is 24.6mm, which can better facilitate the rapid flow of fuel
• Quality Service:We provide a Two-month Return Service，When You Encounter Any Questions About The Product, You Can Contact Me As Soon As Possible, And I Will Answer It For You
